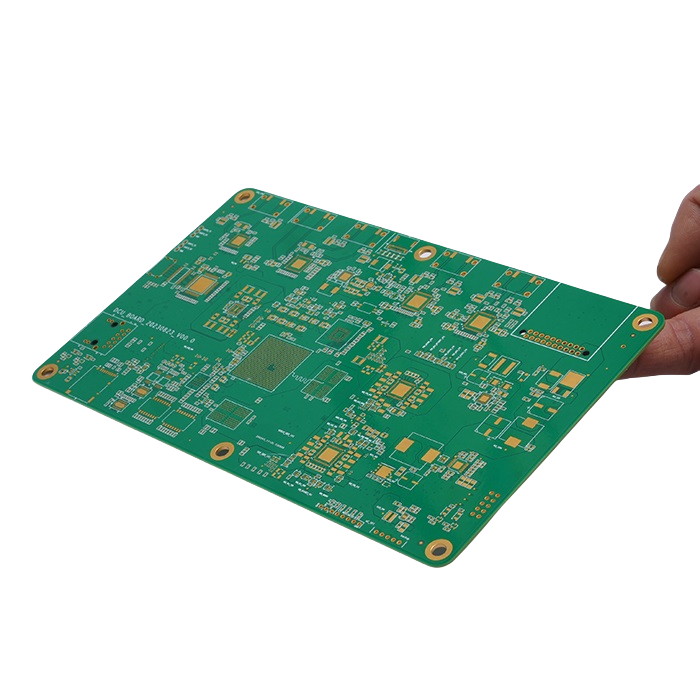

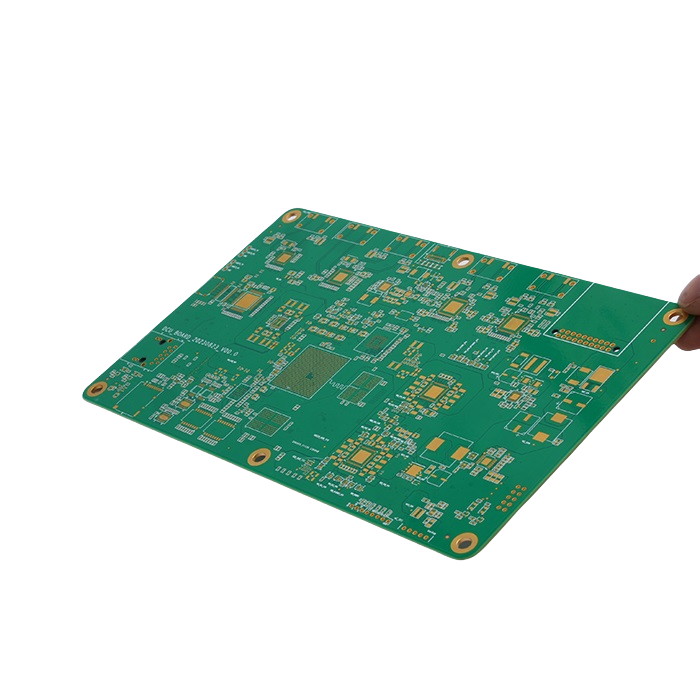

Multilayer Rigid PCB-Zhejiang Mingtehan Electronics Technology Co., Ltd.

Rigid PCB

Function:

Multiple conductive layers interconnected internally, designed for high-density and high-speed signal transmission.

Key specifications:

Thickness: 1.2 mm – 3.2 mm

Copper weight: 1 oz – 2 oz

Minimum trace/space: 0.10 mm / 0.10 mm

Layer count: 4 – 20 layers

Applications:

High-end communication equipment, computers, medical devices.

Product Description

Feature:

A rigid PCB is a circuit board made from solid materials like fiberglass or epoxy resin. This type of board is stiff and does not bend. It includes layers such as conductive copper paths, insulating materials, and a strong base.

Rigid PCBs are essential for supporting various electronic components, making them important in many applications.

Layer count: 1-40+ layers;

Materials: FR-4 (standard), FR-4 High-Tg, Aluminum, Rogers, and other special materials;
